JCC: Optimization And Analysis
NOTE: This is still a Work In Progress... At the moment this is mostly just an outline.
Continuing on with the commit log I started in Part 1.
I also wrote an entire detailed report on topics learned while making these commits here, but this will be much more approachable.
Commits 26-27: Backend Refactoring
The main improvements were:
Better handling of function returns and proper setup/cleanup code (prolog/epilog) in x86_64
Stricter adherence to the Windows x86_64 ABI for better compatibility
Introduction of State tracking for machine instructions to model register definitions, uses, and kills
Implementation of branch instructions (br, brz, brnz) in both x86_64 and interpreter backends
Addition of an "id" operation for identity assignments
Enhanced module-wide register allocation

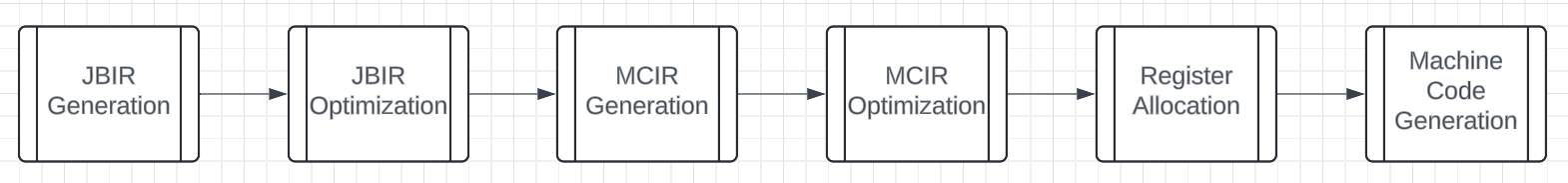

One of the major goals for the whole backend refactor over the past few commits was delaying register allocation until later in the pipeline. So now, instead of register allocation being done on JBIR and before generating MCIR, now it is done before Machine Code Generation.
Also implemented basic-block-level liveness analysis.
Example C code:
int main () {
int x = 17;
int y = 6;
int z = 0;
if ( y < x )
z = x + y ;
return z + x ;
}
Equivalent JBIR:
[ win64 ]
fn main() %0:i32
entry:
%1 = id 17.i32
%2 = id 6.i32
%3 = id 0.i32
%4 = lt %2, %3
brz %4 then cont
then:
%5 = iadd %1, %2
br cont
cont:
%6 = phi [entry, %3], [then, %5]
%7 = iadd %6, %1
ret %7
Liveness analysis results:
entry:
livein:
liveout: 3 1 2
then:
livein: 1 2
liveout: 5 1 3
cont:
livein: 1 3 5
liveout:
Commits 28-31: Mem2Reg
The Mem2Reg pass is a crucial optimization that promotes stack-allocated variables to registers where possible. This transformation is particularly important because:
It reduces memory access operations which are slower than register operations
It enables further optimizations by making value flow more explicit
It helps create proper SSA (Static Single Assignment) form
The example shows how stack loads and stores are eliminated in favor of direct value propagation through registers. The phi nodes are introduced to handle control flow merges properly.
Original JBIR:
fn main() %0:i32
entry:
%1 = slot i32
stack_store %1, 100.i8
brnz 1.i32 first second
first:
br last
second:
stack_store %1, 42. i8
br last
last:
%4 = stack_load %1 i32
ret %4
JBIR after Mem2Reg:
fn main() %0:i32
entry:
noop
%1000 = id 100.i8
brnz 1.i32 first second
first:
br last
second:
%1001 = id 42.i8
br last
last:
%4 = phi [first, %1000], [second, %1001]
ret %4
Also, some small additions/changes.
Commits 32-34: Control Flow Analysis
These commits introduced capabilities for analyzing and visualizing program control flow. The Control Flow Graph (CFG) creation pass builds an explicit representation of how blocks of code are connected, which is essential for:
Understanding program structure
Enabling control-flow-based optimizations
Debugging and visualization
Validating correctness of transformations
(TODO: Insert example image here)
Commits 35-37: SSA Deconstruction
The PhiElim pass handles the complex task of converting code out of SSA form. This is necessary because while SSA is great for optimization, actual hardware can't directly execute phi nodes. The pass:
Converts phi nodes into explicit moves
Handles critical edges by splitting them when necessary
Ensures correct value propagation across control flow paths
Original JBIR:
fn main() %0: i32
b1:
%1 = id 0.i32
br b2
b2:
%2 = phi [b1, %1], [b2, %3]
%3 = iadd %2, 1.i8
%4 = id 5.i32
%5 = lt %2, %4
brnz %5 b2 b3
b3:
ret %2
The example demonstrates how a phi node gets converted into explicit move operations, with special handling of critical edges to maintain correctness.

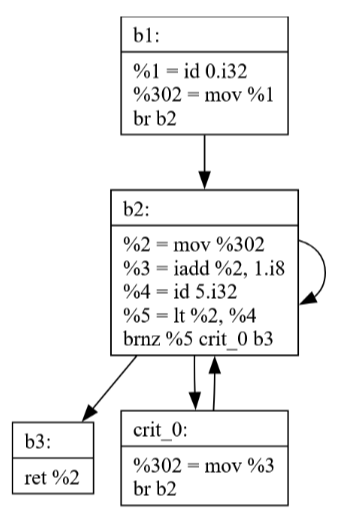

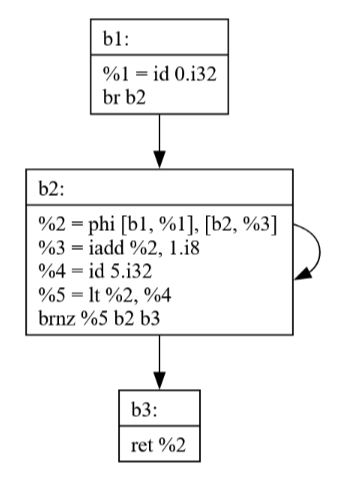

After PhiElim, notice how a critical edge is necessarily broken so code can be generated correctly.
fn main() %0: i32
b1:
%1 = id 0.i32
%302 = mov %1
br b2
crit_0:
%302 = mov %3
br b2
b2:
%2 = mov %302
%3 = iadd %2, 1.i8
%4 = id 5. i32
%5 = lt %2, %4
brnz %5 crit_0 b3
b3:
ret %2
Notice how there's an extra edge from b2 to itself in the
diagram though. This just means I left a dead edge in some
data structure somewhere. I never would have noticed this if
I didn't spend time making this visualization.
Commit 38: Dead Code Elimination

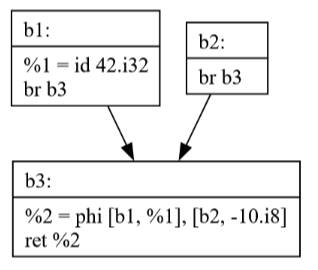

The Dead Code Elimination(DCE) pass removes code that can never be executed, improving both code size and clarity. The visualization shows:
How unreachable blocks are identified
The effect of removing dead code on the program's structure
The importance of control flow analysis for optimization
Notice how b2 is no longer present.
Commit 39: Sparse Simple Constant Propagation
SSCP is a powerful optimization that:
Identifies values that are constant at compile time
Propagates these constants through the program
Enables further optimizations by revealing more constant values
Works efficiently by only analyzing relevant parts of the program
Commit 40: JBIR Generation

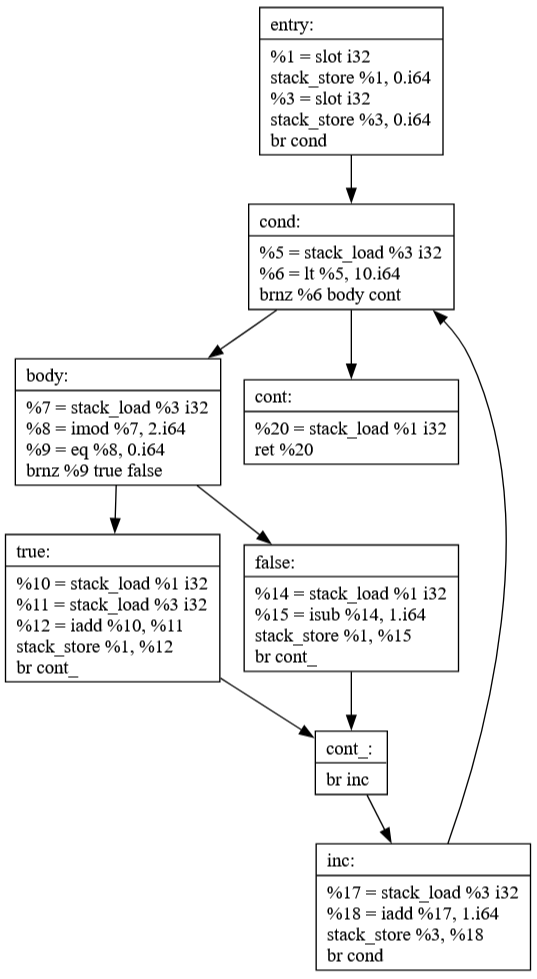

This commit focuses on generating the compiler's intermediate representation (JBIR) from source code. The example demonstrates how high-level control structures like loops and conditionals are transformed into a more primitive form that's easier to analyze and optimize.
int main () {
int a = 0;
for (int i = 0; i < 10; i ++) {
if (i % 2 == 0)
a += i;
else
a -= 1;
}
return a;
}
Commit 41: Global Value Numbering
The Global Value Numbering(GVN) pass identifies computations that produce the same value and eliminates redundant calculations. This optimization:
Reduces code size
Improves execution speed
Identifies common subexpressions
Works across basic blocks
Commit 42: Peephole Optimization

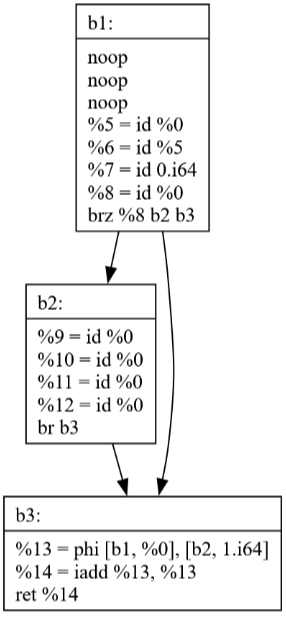

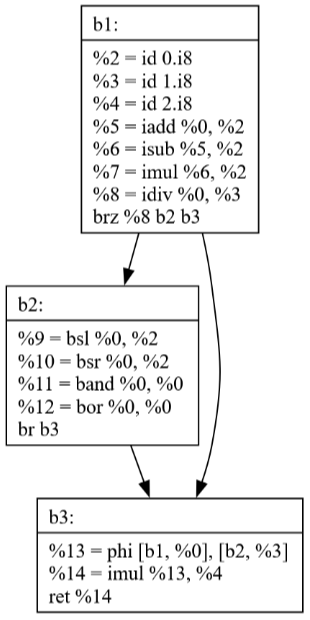

The Peephole optimization pass looks at small sequences of instructions and replaces them with more efficient alternatives. The visualizations show how:
Simple patterns are identified and optimized

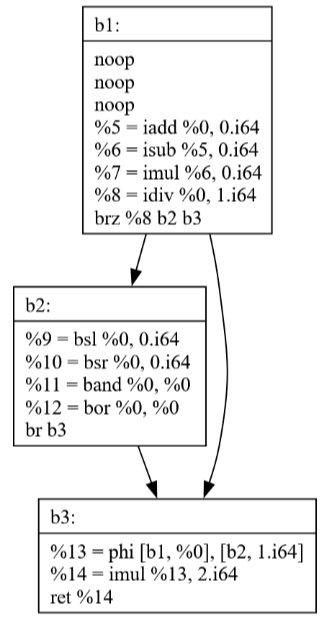

Multiple passes can work together (SSCP + Peephole)
Local optimizations can have significant impact
Commits 43-44: Loop Optimization
The Loop-Invariant Code Motion pass(LICM) identifies calculations that don't need to be repeated in loops and moves them outside. This optimization:
Reduces redundant computations
Must preserve program semantics
Requires careful handling of execution conditions
Can significantly improve performance for loops
int main () {
int a = 0, b = 0;
int c1 = 15 , c2 = 5;
for (int i = 0; i < 10; ++i) {
a += i;
b = c1 + c2;
}
return a + b;
}

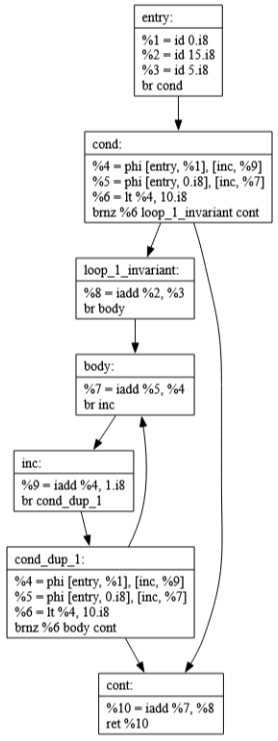

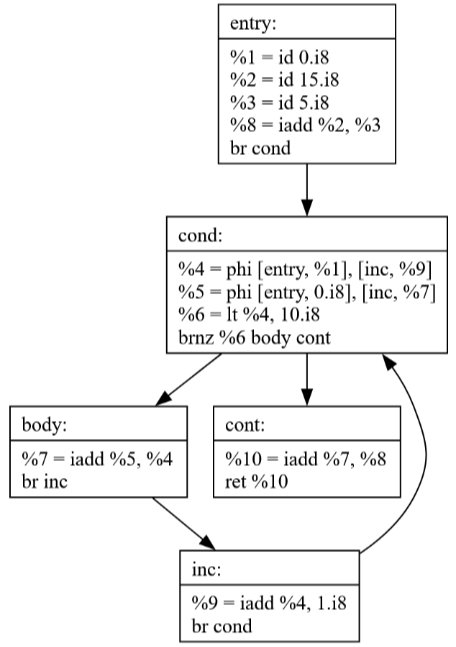

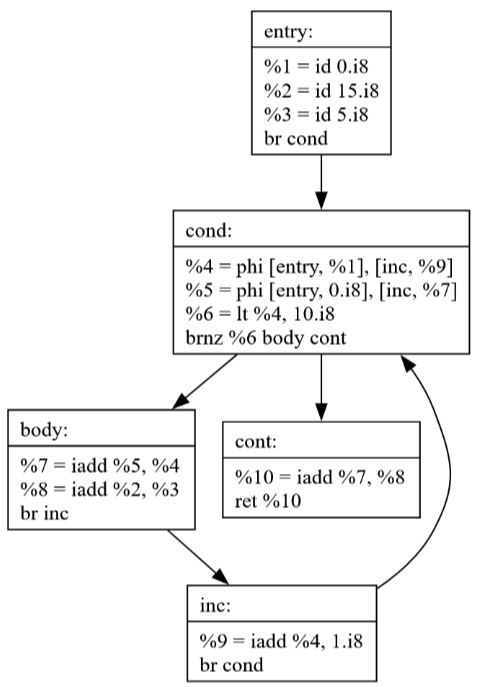

If the loop condition is always false the loop-invariant code
pulled into the entry block would never
have executed previously, but now it does. This is not
correct.
Commits 45-47: Function Inlining
These commits implement function inlining, which replaces function calls with the actual function body. The example shows how:
Simple function calls can be completely eliminated
Multiple optimization passes work together
Complex operations can be reduced to constants
Code cleanup helps maintain simplicity
int add (int lhs, int rhs ) {
return lhs + rhs;
}
int main () {
return add (3 , 39);
}

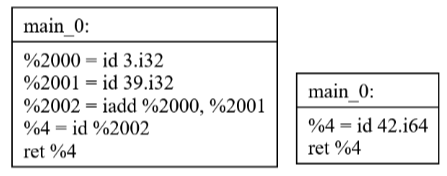

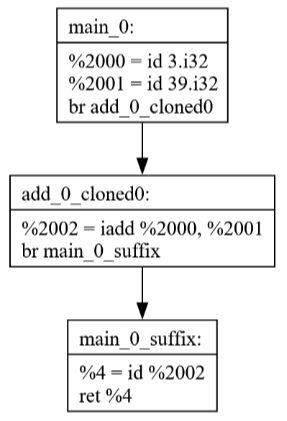

After running a cleanup pass then SSCP it simplifies down to
a single constant.
Commits 48-49: Optimization Pipeline
These commits introduce a more structured approach to running optimization passes. The new pass management system:
Ensures passes are run in the correct order
Handles dependencies between passes
Repeats optimizations until no more improvements can be made
Maintains consistency of program representation
Pass Management.
Previously I was manually running passes until a fixed point
for specific pieces of code to test.
Commits 50-51: x86_64 Instruction Encoding
Here is an example of the new pass management code.
bool changed;
do {
changed = false;
changed |= SSCP::run_pass(f);
CreateCFG::run_pass(f);
CFGViz::run_pass(f);
changed |= DCE::run_pass(f);
CreateCFG::run_pass(f);
CFGViz::run_pass(f);
changed |= Cleanup::run_pass(f);
CreateCFG::run_pass (f);
CFGViz::run_pass(f);
} while(changed);
Commits 50-51
Instruction Encoding for x86_64.
This work focuses on the final stage of compilation where JBIR instructions are converted to actual machine code. The instruction table shows:
How abstract operations map to concrete instructions
The complexity of x86_64 instruction encoding
The importance of proper instruction selection
Commits 52-54: Arrays & Strings
These final commits add support for arrays and string escape sequences, demonstrated through an implementation of the Eight Queens Puzzle. While the implementation isn't yet perfect, it showcases:
Array handling capabilities
String processing features
Complex control flow
Real-world algorithm implementation
Taking inspiration from the example program on Day 15 of Rui's C Compiler Blog Post I created the code below for solving the Eight Queens Puzzle.
I took special care to make sure it avoids unimplemented features, there's a few obvious workarounds that you may be able to see. However, even then, there's still some minor issue preventing it from working. After a few iterations it ends up crashing. That means there's still more work to do then!
#include <stdbool.h>
extern int printf(char*);
void print_board(int *board) {
for (int i = 0; i < 8; i++) {
for (int j = 0; j < 8; j++) {
if (board[i * 8 + j] == 1)
printf("Q ");
else
printf(". ");
}
printf("\n");
}
printf("\n\n");
return;
}
bool conflict(int *board, int row, int col) {
for (int i = 0; i < row; i++) {
if (board[i * 8 + col] == 1)
return true;
int j = row - i;
if ((col - j) >= 0)
if(board[i * 8 + (col - j)] == 1)
return true;
if ((col + j) < 8)
if(board[i * 8 + (col + j)] == 1)
return true;
}
return false;
}
int solve(int *board, int row) {
if (row == 8) {
print_board(board);
return 1;
}
int solutions = 0;
for (int i = 0; i < 8; i++) {
if (conflict(board, row, i) == false) {
board[row * 8 + i] = 1;
solutions += solve(board, row + 1);
board[row * 8 + i] = 0;
}
}
return solutions;
}
int main() {
int board[64];
int *board_ptr = board;
for (int i = 0; i < 64; i++) {
board[i] = 0;
}
solve(board_ptr, 0);
}
